Automatic round steel rod cutting machine

Automatic round steel rod cutting machine is high automation steel rod cut to length equipment.

Description

Description

Automatic round steel rod cutting machine Specifications

MODEL CQ500
Shearing force(Ton)500
Cutting speed (m/min)18
Stroke (S/min)100
Material block (mm)10-unlimit
Cut surface deviation (degree) ≤3
Cut surface roundness 0.95
Weight deviation (g)±2
 Dimension LXWXH (mm) 1700*1200*1900
Main motor power (kw)17
Weight(T)1.6
Manual Rod feeder LXWXH (mm) 4600*1000*1030

Automatic round steel rod cutting machine Applications and Features

Application:Be used to cut steel round rod or bar into fix length blank pieces.

The Automatic round steel rod cutting machine is a fully automatic cutting and shearing machine. After the operator set the cutter, the whole bundle of bar material is placed, and the blanking weight and bar diameter are input on the touch screen, and then the switch is turned to automatic, it can be fully automatic production. Except for loading (carrying the entire bundle of bars to the rack) and discharging (moving the cut bar), the intermediate process does not require manual operation.

The Automatic round steel rod cutting machine are suitable for cutting carbon steel and alloy structural steel bars. The head and tail of the bar should be able to enter the cutter. If the material is a coil, need straighten and then cut into bars.

Features:

1.Easy operation: this type of cutting machine is fully automatic operation. After the operator enters the weight, bar diameter or directly enters the length, in addition to replacing the cutter and loading and unloading, the intermediate process does not require human operation. When the fault occurs, it will automatically alarm and stop.

2.High cutting accuracy: verticality of cut surface <1 °, length <0.1mm.With cluth to impove the steady and performance.

3.No bar sorting required: Equipped with an automatic sorting system to separate head and tail materials from qualified products, plus high cutting accuracy, no need to sort bar stock.

4.Low labor intensity and labor saving: Because it is fully automatic operation, no manual operation is required in the intermediate process, and labor intensity is low, one person can operate more than 3 units.

5.Low noise: the hydraulic cutting system is adopted, the cutting action is stable, the noise is low, and it meets the requirements of environmental protection.

6.Low failure rate and easy maintenance: the core parts are imported from abroad, with long service life and low failure rate. There is a fault prompt function, the cause of the fault is easy to detect, and maintenance is convenient.

Automatic round steel rod cutting machine Cut Samples

Precision hydraulic steel rod barcutting machine Cut Samples

Precision hydraulic round steel cutting machine Cut Samples

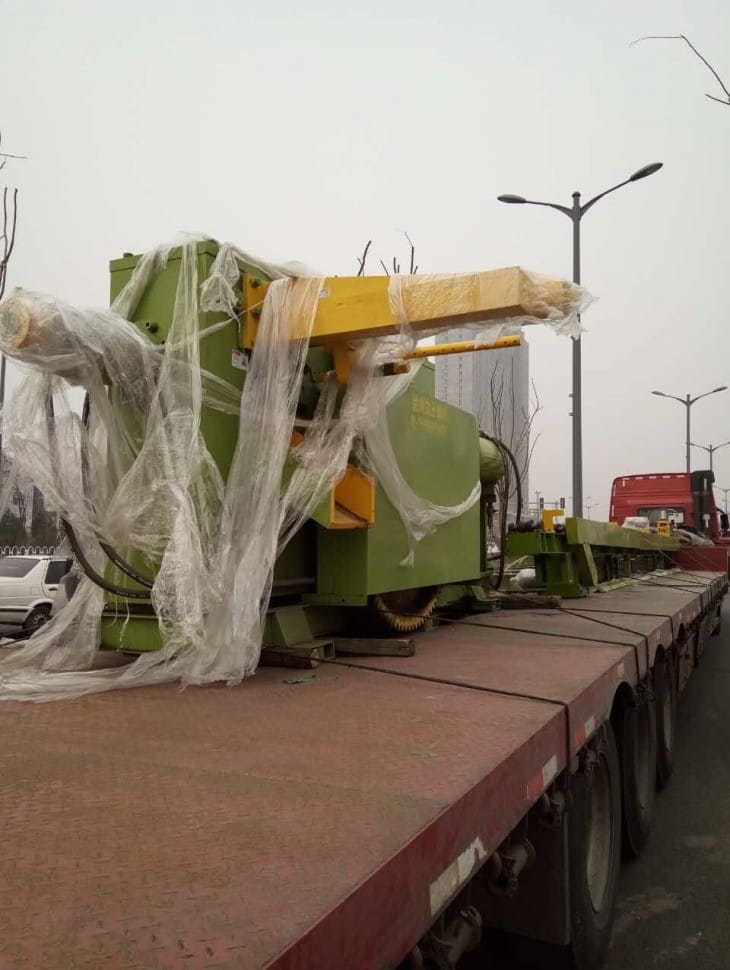

Round steel rod bar automatic cutting machine delivery-1

Round steel rod bar automatic cutting machine delivery-1

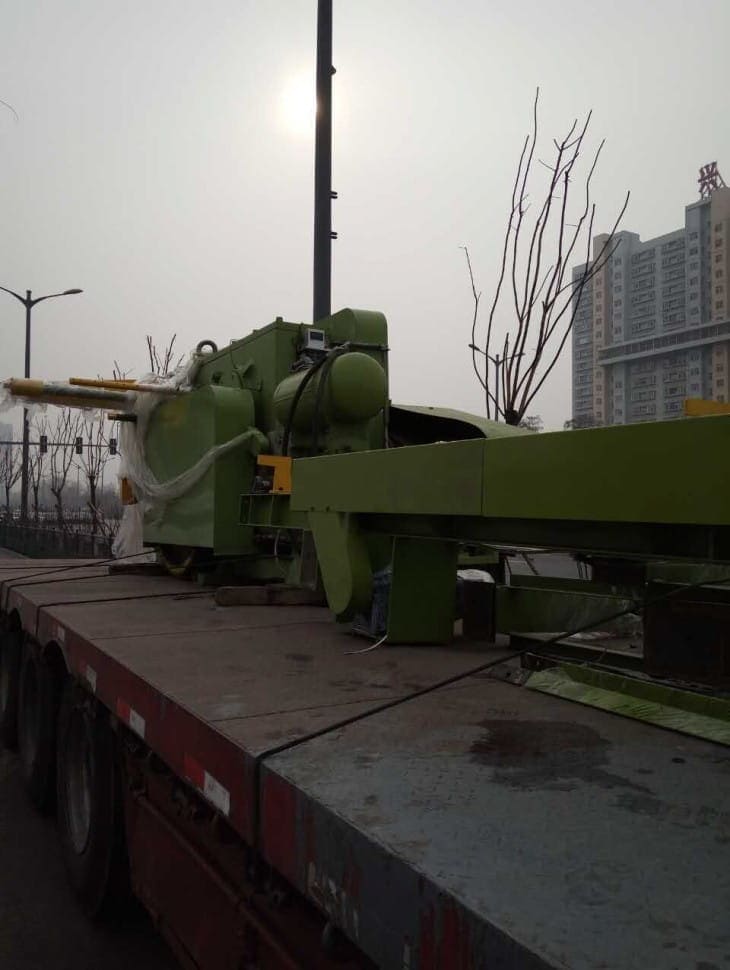

Round steel rod bar automatic cutting machine delivery-2

Round steel rod bar automatic cutting machine delivery-2

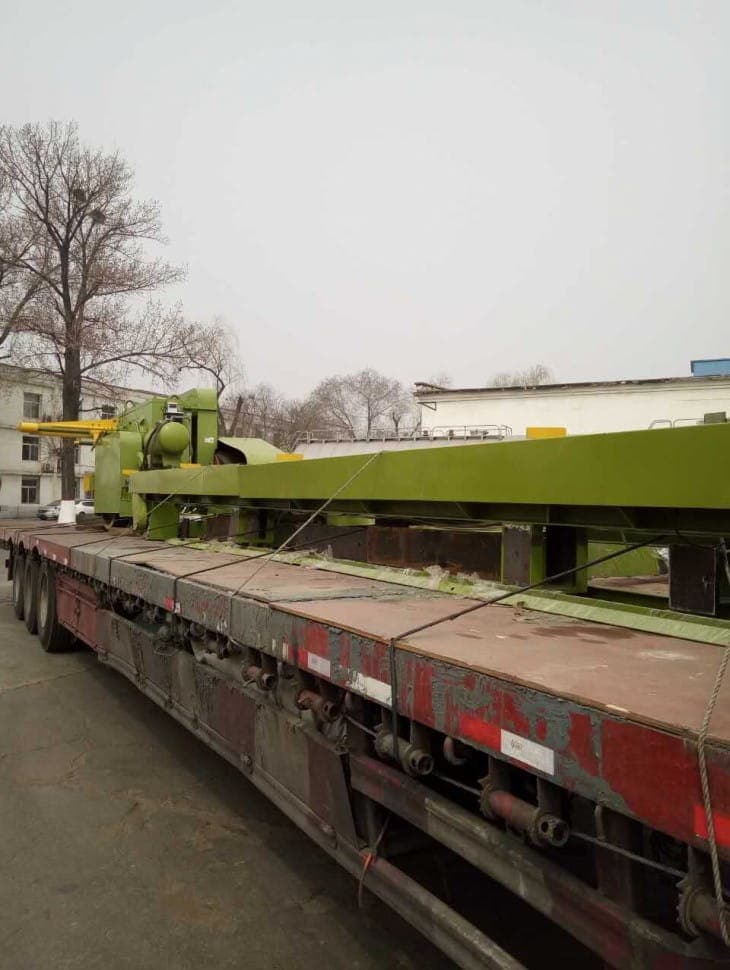

Round steel rod bar automatic cutting machine delivery-3

Round steel rod bar automatic cutting machine delivery-3

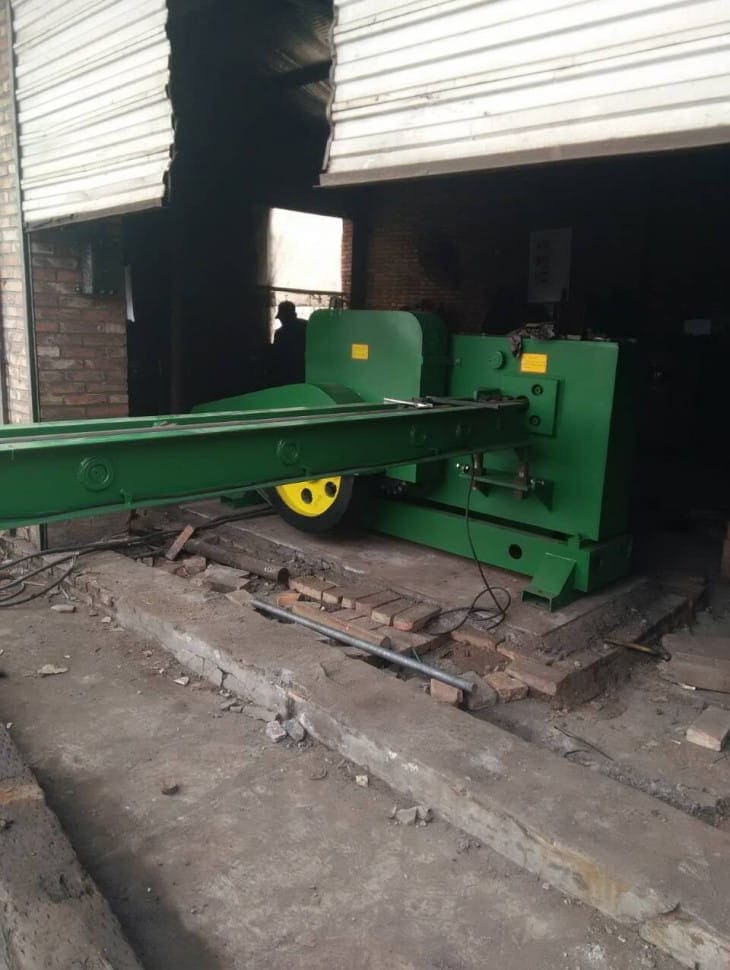

Round steel rod bar automatic cutting machine installation-1

Round steel rod bar automatic cutting machine installation-1

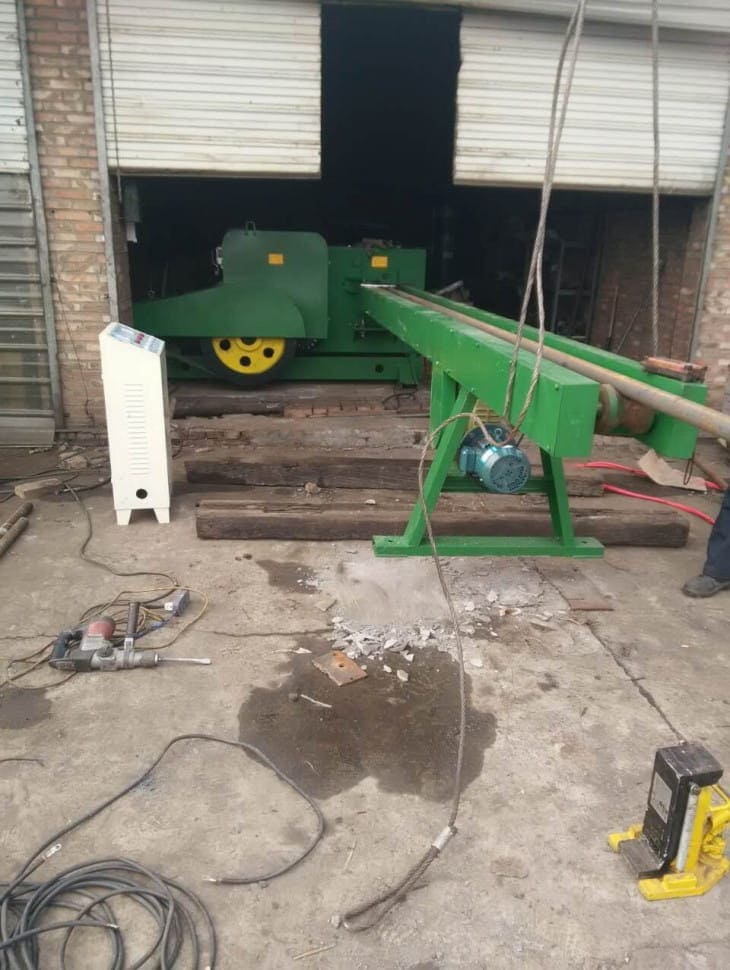

Round steel rod bar automatic cutting machine installation-2

Round steel rod bar automatic cutting machine installation-2

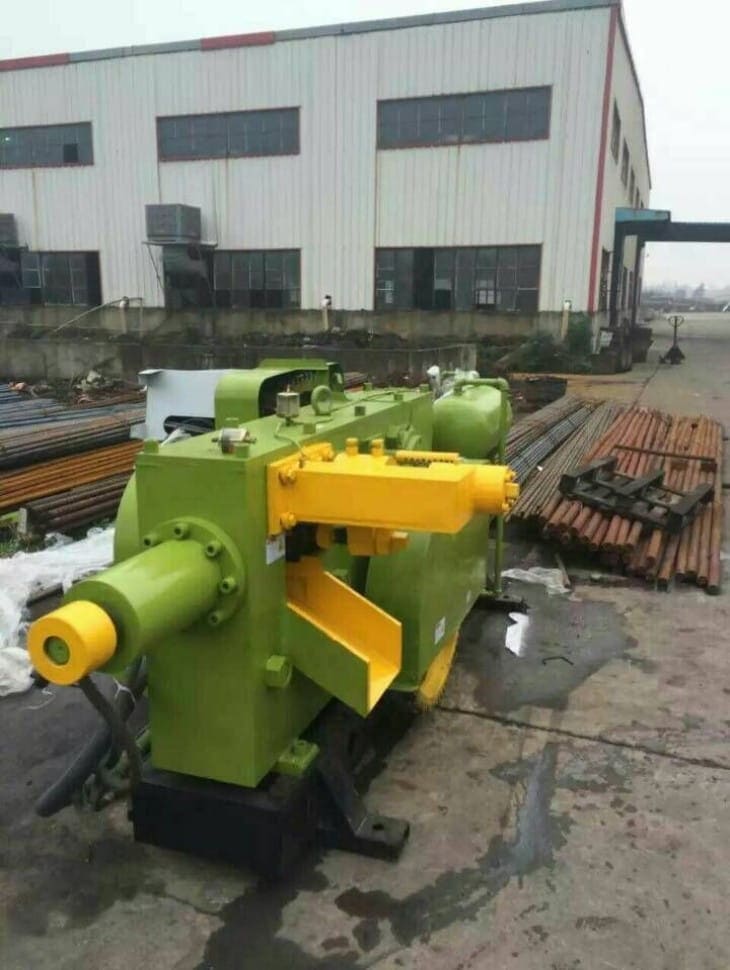

Round steel rod bar automatic cutting machine installation-3

Round steel rod bar automatic cutting machine installation-3

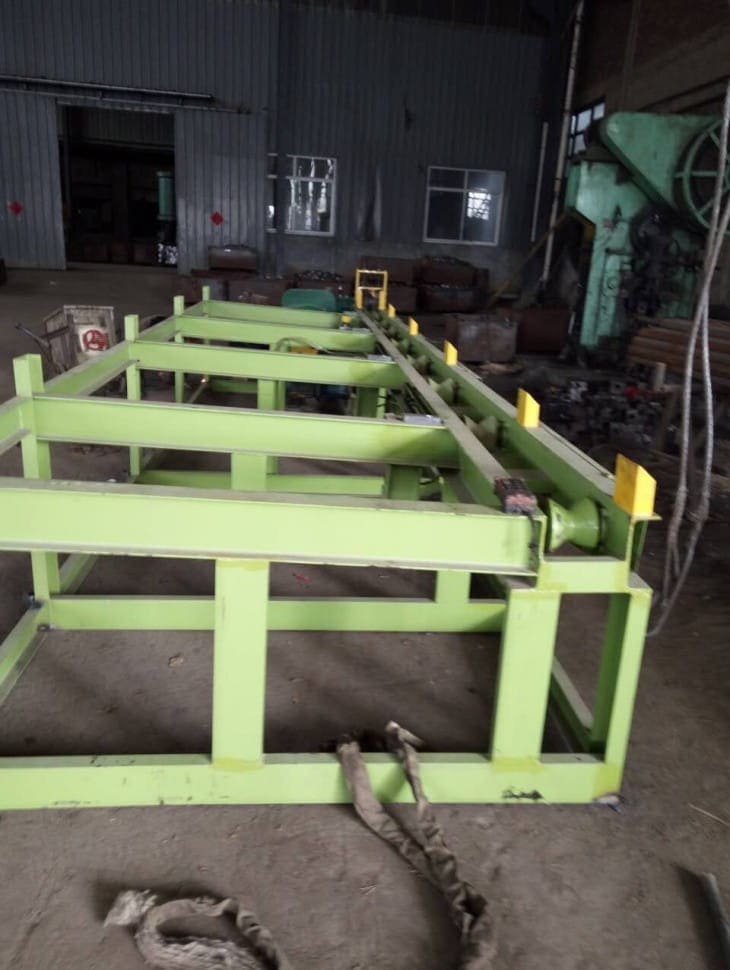

Round steel rod bar automatic cutting machine installation-4

Round steel rod bar automatic cutting machine installation-4

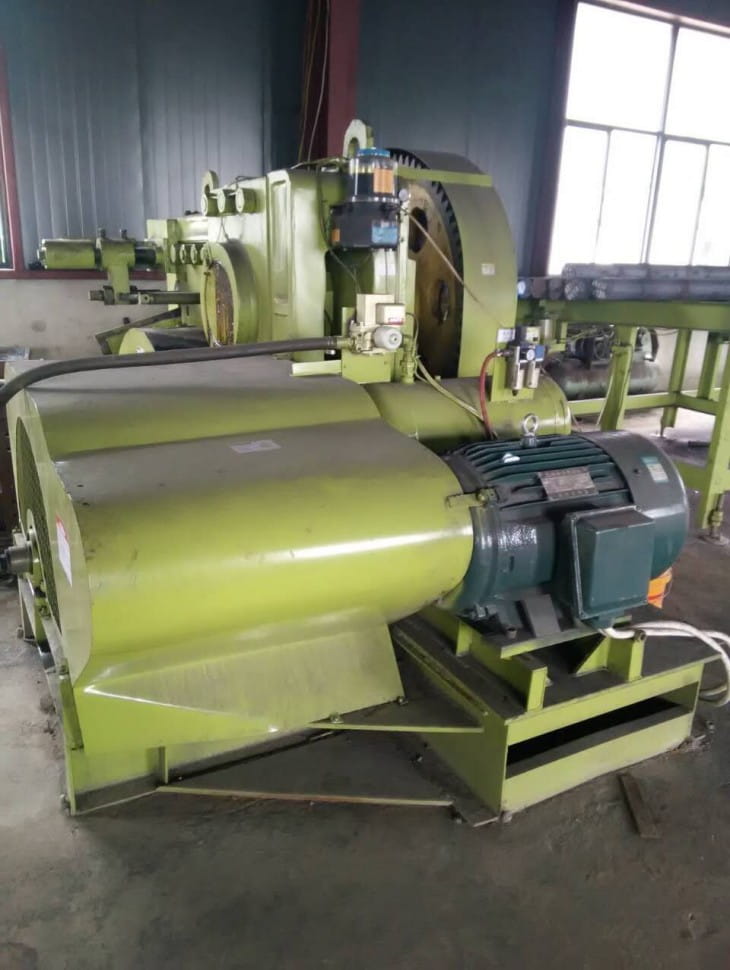

Round steel rod bar automatic cutting machine installation-5

Round steel rod bar automatic cutting machine installation-5

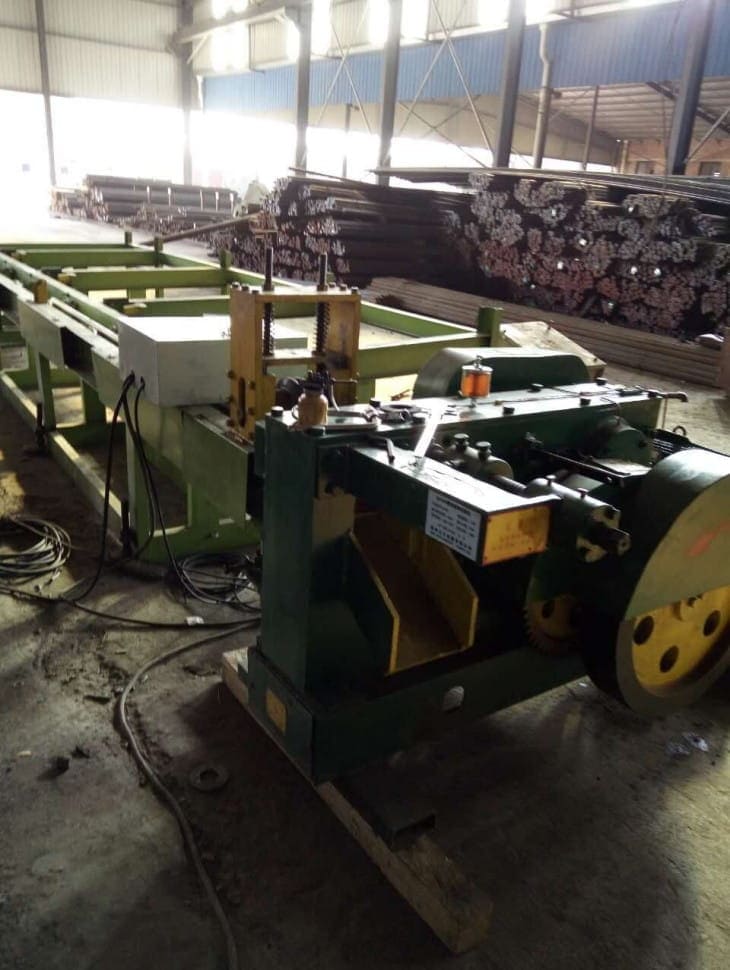

Round steel rod bar automatic cutting machine trial production-1

Round steel rod bar automatic cutting machine trial production-1

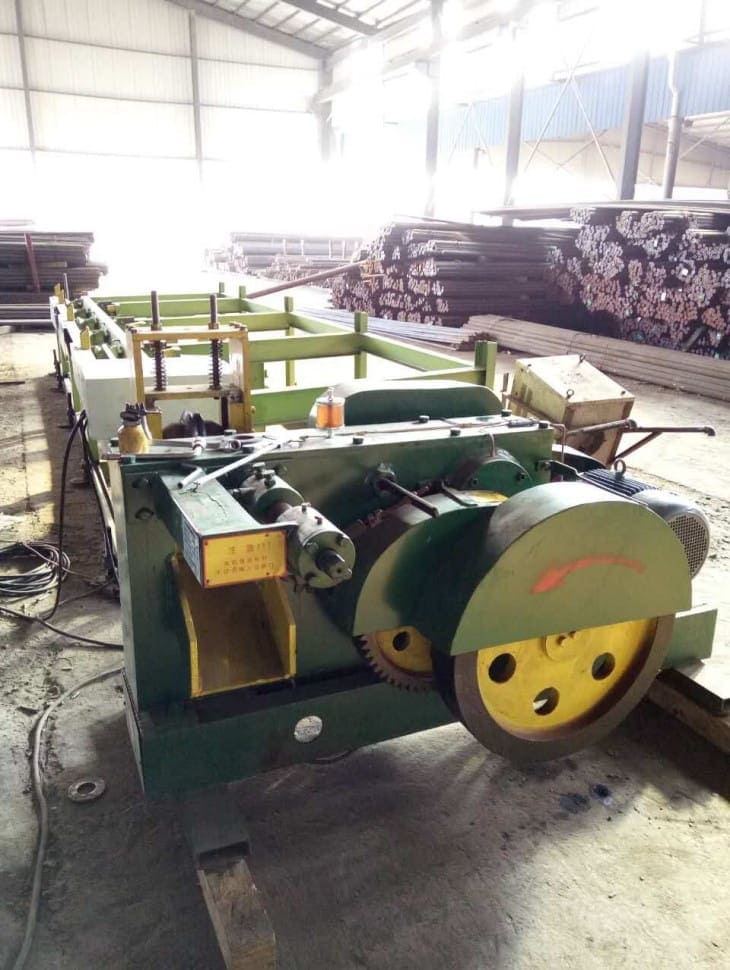

Round steel rod bar automatic cutting machine trial production-2

Round steel rod bar automatic cutting machine trial production-2

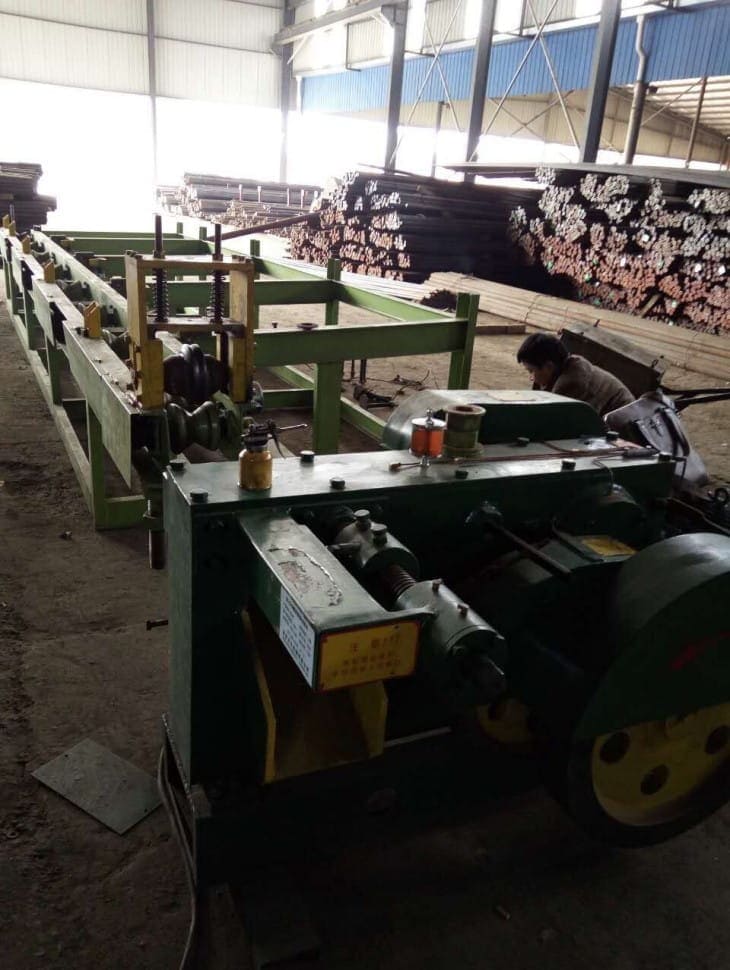

Round steel rod bar automatic cutting machine trial production-3

Round steel rod bar automatic cutting machine trial production-3

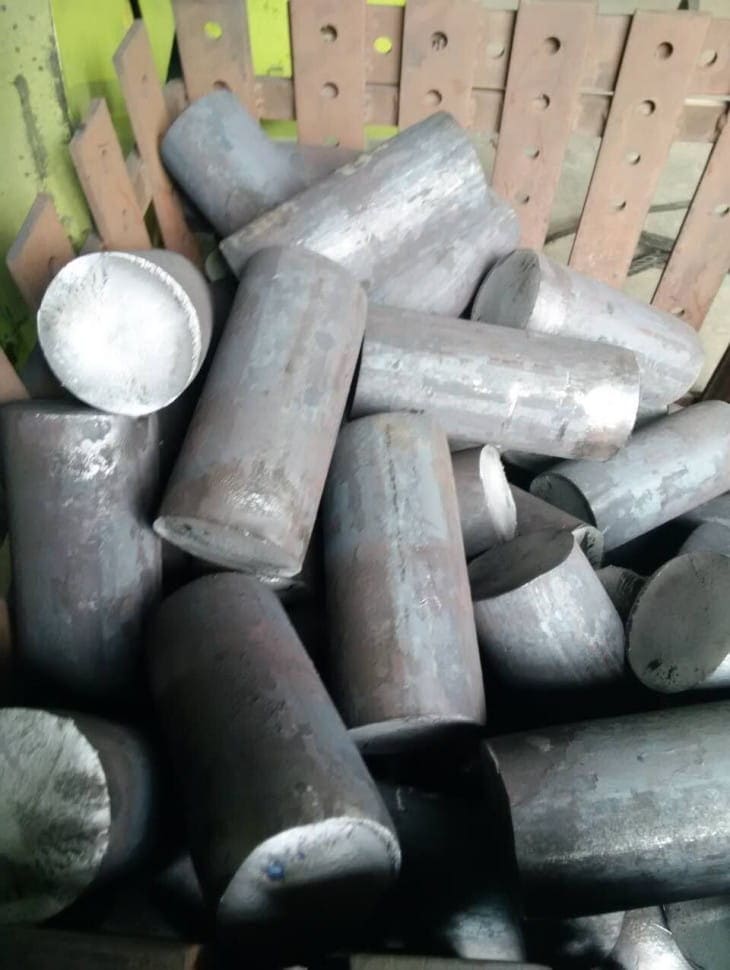

Round steel rod bar automatic cutting machine trial production-4

Round steel rod bar automatic cutting machine trial production-4
