Portable copper bar processing machine Specifications
| HYDRAULIC PLATE BAR SHEARING MACHINE | |||
|---|---|---|---|
| MODEL | UNIT | HS-150 | HS-200 |
| OIL CYLINDER FORCE | TON | 15 | 20 |
| SHEARING MAX. THICKNESS | MM | 10 | 12 |
| MAX. SHEARING WIDTH | MM | 150 | 200 |
| DIMENSION | MM | 410*285*180 | 430*340*200 |
| WEIGHT | KG | 26 | 35 |
| HYDRAULIC PLATE BAR HOLE PUNCHING MACHINE | |||
| MODEL | UNIT | HP-150 | HP-200 |
| PUNCHING MAX. THICKNESS | MM | 10 | 12 |
| OIL CYLINDER FORCE | TON | 31 | 35 |
| STROKE | MM | 95 | 115 |
| WEIGHT | KG | 14 | 28 |
| HYDRAULIC PLATE BAR BENDING MACHINE | |||
| MODEL | UNIT | HB-150 | HB-200 |
| HONRIZENTAL BENDING FORCE | TON | 16 | 20 |
| HONRIZENTAL BENDING THICKNESS | MM | 10 | 12 |
| HONRIZENTAL BENDING WIDTH | MM | 150 | 200 |
| WEIGHT | MM | 17 | 24 |
| SUIT MATERIAL | COPPER BARS AND ALUMINIUM BARS | COPPER BARS AND ALUMINIUM BARS | |
| HYDRAULIC ELECTRIC PUMP | |||
| MODEL | UNIT | HP-150 | |
| RATED PRESSURE | MPA | 63 | |
| MOTOR POWER | KW | 0.75 | |
| OIL TANK CAPACITY | L | 5 | |
| DIMENSION | MM | 350*270*490 | |
| WEIGHT | KG | 28 | |
| MANUALLY HYDRAULIC PUMP | |||
| MODEL | UNIT | HM-150 | |
| RATED PRESSURE | MPA | 63 | |
| DIMENSION | MM | 570*140*150 | |
| WEIGHT | KG | 8 |
Portable copper bar processing machine Applications and Features
Portable copper bar hole punching machine:
This machine is a special tool for busbar punching. It is suitable for high-altitude operation, high speed and no burr. Accurate positioning, no deviation in punching accuracy. Optional manual pump, foot pump, electric pump.
Portable copper bar shears cutting machine:
This machine is a special processing tool for cutting copper and aluminum bars. The cutting speed is fast, the cutting surface is flat and not deformed, and there is no waste on one side. Optional manual pump, foot pump, electric pump.
Portable Copper bar bending machine:
This machine is a special processing tool for cutting copper and aluminum bars. Cover can be lifted. When bending a long copper bar, the N or L type can pull out the bolts, and the whole bar is out not hindered.
Portable copper bar processing machine Structure and Components

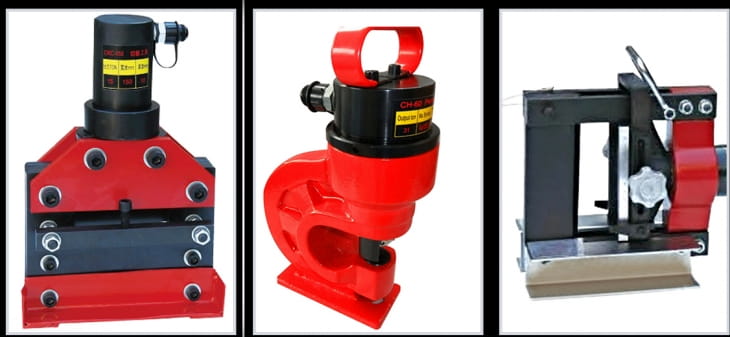

Cutting station Punching station Bending station
High performance hydraulic motor station Good positioning shear cutting unit
Nested mold punching unit High precision shape forming unit
Highly sealed hydraulic oil pipeline Universal wheels for easy movement
Portable copper bar processing machine Produced Busbar Samples
Bus bar various shapes and samples
1.Sheared bus bar plate 2.Standing bend and twisted bus bar 3.Holes punched bus bar 4.U shape bending bus bar 5.Holes punched and knurling pressed bus bar 6.8.Punch and bend combination bus bar 7.Twisted bus bar
