Angle steel punching and shearing machine

Multifunctional punching and shearing machine is used for cutting, punching, engraving and other processing of angle steel, flat steel, round steel, square steel, channel steel and other metal materials. It uses overlapping two-stage levers and sliders to drive the slide plate with three cutting blades to move up and down, and the cutters mounted on the frame complete the cutting and punching processing. The equipment is compact in structure, versatile in function, small in size, light in weight and easy to operate.

Description

Description

Angle steel,channel steel punching and shearing machine Specifications

MODELUNITAKS-AC-8AKS-AC-10AKS-AC-12
MAX. SHEARING FORCEKN4005501000
CUTTER STROKEMM273036
STROKE PACETIMES/MIN.303030
MOTOR POWERKW2.234
DIMENSIONCM95*50*117100*63*130110*60*150
WEIGHTKG5507501150

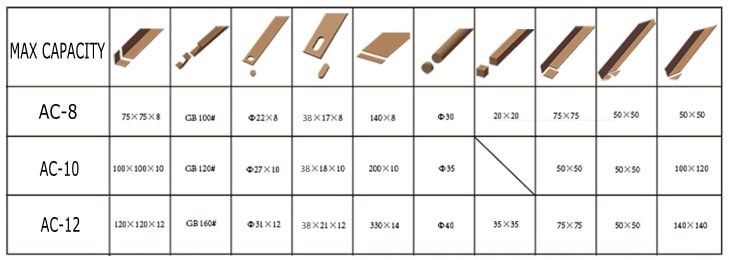

Angle steel,channel steel punching and shearing machine capacity

Angle steel,channel steel punching and shearing machine capacity

Angle steel,channel steel punching and shearing machine Applications and Features

Application:

Multifunctional punching and shearing machine for angle steel,channel steel ,steel bar.Multifunctional punching and shearing machine is used for cutting, punching, engraving, angle carving and other processing of angle steel, flat steel, round steel, square steel, channel steel and other metal materials.

It uses overlapping two-stage levers and sliders to drive the slide plate with three cutting blades to move up and down, and the cutters mounted on the frame complete the cutting and punching processing. The equipment is compact in structure, versatile in function, small in size, light in weight and easy to operate.

Angle steel,channel steel punching and shearing machine Structure and Components

Angle steel,channel steel punching and shearing machine Structure and Components

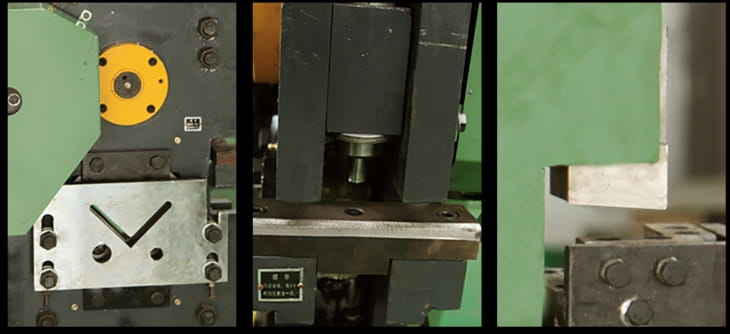

Angle steel,channel steel punching and shearing machine Structure and Components-1

Angle/round steel cutting station                angle/channel steel punch station                  Carved angle station.
