Busbar double-end bending machine

The busbar double-head bending machine is a new type of processing equipment independently developed by our company.Its main purpose is to bend the both ends of the busbars used in the busbar production industry, and double-bend forming at each end.
There is no need to repeatedly replace the copper bar, which has the outstanding advantages of fast processing speed, high process accuracy, and time and labor saving.

Description

Busbar double-end bending machine Specifications

MODEL	UNIT	AKS-DB-600
RATED FORCE POWER	KN	600
BUSBAR SIZE	MM	330-6200
POWER	KW	4
DIMENSION	CM	360150100
WEIGHT	TON	1.3

Busbar double-end bending machine Applications and Features

Application:The busbar double-head bending machine is a new type of processing equipment independently developed by our company.Its main purpose is to bend the both ends of the busbars used in the busbar production industry, and double-bend forming at each end.
There is no need to repeatedly replace the copper bar, which has the outstanding advantages of fast processing speed, high process accuracy, and time and labor saving.

Features:

1.This product is mainly used for busbar bending in both ends of the busbar industry.

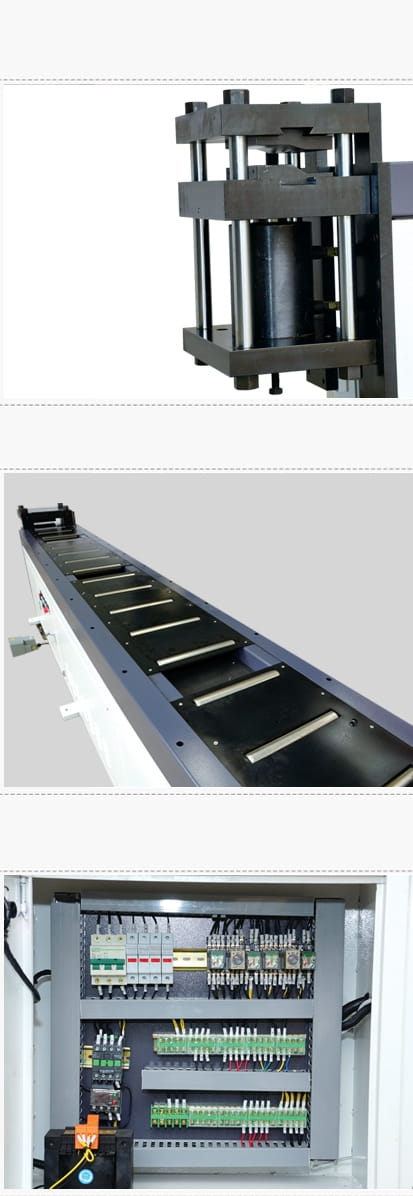

2.The mainframe at both ends of the machine adopts hydraulic working mode, which has the advantages of high pressure and stable performance.

3.The two ends of the bus bar are formed by double bending at one time, with fast processing speed and high work efficiency.

4.The large-tonnage hydraulic oil cylinder is matched with a large-flow gear pump to ensure the operating speed of the equipment.

5.The main components are all well-known brands to ensure the stability of the equipment
